RE: [Utah-astronomy] Vdb142 in Ha - The Elephants Trunk
Rich, Thanks, to all, for the comments on this image. I am pretty happy with it. Rich asked: <I'm assuming that if such an image requires 4 hours of <exposure, this nebulae is pretty faint; I don't <suppose this thing can be observed visually (I'm <showing my ignorance here regarding Ha filters as well <-- are these things strictly for photographic use...)? Actually, each exposure was only 20 minutes, but I took lots of them to help smooth out the nebulous areas of the image. If you only shoot a few frames, the noise is pretty bad, but as you add more, things really smooth out. The object is pretty faint, but with a scope the size of yours you may be able to detect it. It would be difficult at best. I really haven't tried to observe it with a large instrument. I don't think Ha filters are useful for visual observing. The emission line that they isolate is at a wavelength of about 650nm, which is outside the range of human night-sensitivity. I am attaching an image borrowed from a website of a prominent filter manufacturer (I cropped off the name of the company). It illustrates the range covered by a typical Ha filter. You can see that it doesn't overlap with human visual range. Here is the text that went along with the image:

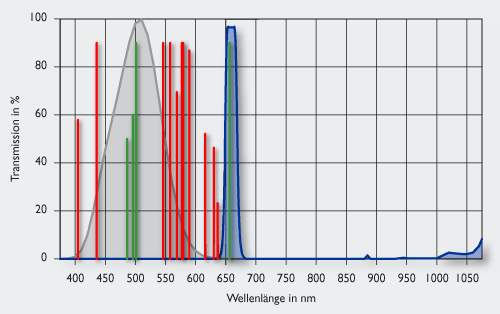

From website: <The red lines are the most important lines from artificial light pollution. <The green lines are the most prominent emission lines for nebulas. The grey <curve is the human eye´s night-sensitivity. The blue line is the <transmission curve of the Ha filter.
However, the Hydrogen-Beta line is nearly in the middle of the human range, which explains why Hb filters are so popular for cutting light pollution and targeting emissions. Thanks for the interest. Tyler
Tyler, Now that we're picking your well-stocked brain, can you talk a bit about stacking vs. long exposure? I understand that this beautiful view is a stack of several 20-minute shots. I assume a whole bunch of 20-minute pictures will still result in a final view that is not overexposed because what you're doing is eliminating noise. But 20 minutes still seems like a long exposure. I've had a galaxy overexpose in (I think) five or ten minutes. Is the nebula pretty dim? And just for discusison, what do you think a view of four hours, without stacking, would look like? Thanks, Joe
--- Tyler Allred <tylerallred@earthlink.net> wrote: <snip>
I don't think Ha filters are useful for visual observing. The emission line that they isolate is at a wavelength of about 650nm, which is outside the range of human night-sensitivity.
Some additional info along the same lines - The Lumincon Ha filter is intended to be photographic only, as shown in their online bandpass figures - the H-beta filter is for visual. Lumicon filter http://www.lumicon.com/filterspec_prnt.htm Photo h-alpha bandpass http://www.lumicon.com/images/lumicon%20photo%20chart.jpg Visual h-beta bandpass http://www.lumicon.com/images/lumicon%20visual%20chart.jpg - Canopus56 __________________________________________________ Do You Yahoo!? Tired of spam? Yahoo! Mail has the best spam protection around http://mail.yahoo.com
Aha! So my initial surmise was correct. OK Tyler, so perhaps 12 twenty-minute exposures in one night would be a bit taxing- but it wouldn't take a man of steel. (Trust me, I've done it, and I'm hardly able to leap tall buildings in a single bound...of course, I was much younger then.) A man of aluminum, maybe, or at least bismuth. ;o) BTW, for any low-tech film photographers, most common b&w film emulsions are very red-sensitive. You can easily shoot emission nebulae on b&w film with a regular red filter from the suburbs, and get very good results without registering light pollution. It records Ha very well. --- Tyler Allred <tylerallred@earthlink.net> wrote:
Actually, each exposure was only 20 minutes, but I took lots of them to help smooth out the nebulous areas of the image.
__________________________________________________ Do You Yahoo!? Tired of spam? Yahoo! Mail has the best spam protection around http://mail.yahoo.com
