Re: [math-fun] radix notation, |r|=1, e.g., r=exp(i)
Ok, so here's a complete algorithm for representing *any* complex number z=x+yi=L*e^(i*theta) using digits "0" and "1" in radix exp(i)=e^i, to any precision you please. We first pick integer k, s.t. e^(i*k) ~ e^(i*theta) to the desired degree of precision. We then approximate L ~ sum(2*cos(j)), for j suitably chosen, as described below. Then z = L*e^(i*theta) = sum(2*cos(j),j in suitable set)*e^(i*k). I don't believe that there are any "collisions", whereby the product produces any bit positions which require a digit other than "0" or "1", but if there were, one could always choose a different set of j's in a way to avoid such collisions. As an example, let's approximate -pi = pi*exp(i*pi). We first approximate exp(i*pi) to within 1 angular degree. k=22 works, so exp(22*i) ~ exp(pi*i). We now approximate pi using a cosine series. pi = sum(2*cos(j), suitable j), so pi ~ 1 + 2*cos(6) + 2*cos(11) + 2*cos(14) + 2*cos(77) ~ 3.14. Finally, we have pi*e^(pi*i) ~ (r^0+r^6+r^-6+r^11+r^-11+r^14+r^-14+r^77+r^-77)*r^22 = r^-55+r^8+r^11+r^16+r^22+r^28+r^33+r^36+r^99 Check using Maxima: (%i1) r^-55+r^8+r^11+r^16+r^22+r^28+r^33+r^36+r^99; 99 36 33 28 22 16 11 8 1 (%o1) r + r + r + r + r + r + r + r + --- 55 r (%i2) %,r=exp(%i),rectform; (%o2) %i (sin(99) - sin(55) + sin(36) + sin(33) + sin(28) + sin(22) + sin(16) + sin(11) + sin(8)) + cos(99) + cos(55) + cos(36) + cos(33) + cos(28) + cos(22) + cos(16) + cos(11) + cos(8) (%i3) bfloat(%); (%o3) - 2.77994517385043b-2 %i - 3.140593309047521b0 (%i4) log(%); (%o4) 1.144450908369626b0 - 3.132741228718346b0 %i (%i5) exp(realpart(%)); (%o5) 3.140716342230068b0 (%i6) At 08:17 AM 5/5/2018, Henry Baker wrote:
I've been looking at expressing numbers in radix-r notation, for |r|=1, e.g., r=exp(i)=e^i.
Real r, |r|=1 is too boring, so I looked at complex r, |r|=1.
r=exp(i)=e^i is "representative" of this class, and is easy to deal with in a computer algebra system.
We first notice that "most significant bit" and "least significant bit" have no meaning, because |r^n|=1 for all real n.
We're obviously not in Kansas, anymore, Toto!
Zero = "0", as usual.
One = "1", as usual.
Since r^k+r^(-k) = 2*cos(k), we can represent real numbers in the range [-2,2] to any degree of accuracy we wish with only 2 "1" bits using an appropriate k.
Every other real number outside this range can be expressed (very inefficiently) using a "greedy" algorithm that subtracts 2*cos(k) for various k's. "Inefficient" here means that expressing n takes O(n) 1 bits, and most likely O(n) bits in total.
I also plotted all of the complex numbers I could construct using m bits on both sides of 1 -- i.e., binary numbers from 2^(-m) up to 2^m. These form pretty & mostly symmetrical patterns with blotches that eventually merge as m grows in size. (I don't have any way to show you these plots.)

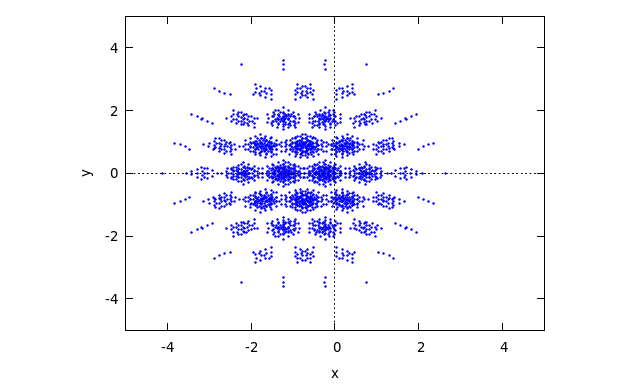

Henry's plot [1] Usually (always?) you need |base|² digits. So these conversions are highly non-unique? --rwg On 2018-05-05 11:38, Henry Baker wrote:
Ok, so here's a complete algorithm for representing *any* complex number z=x+yi=L*e^(i*theta) using digits "0" and "1" in radix exp(i)=e^i, to any precision you please.
We first pick integer k, s.t. e^(i*k) ~ e^(i*theta) to the desired degree of precision.
We then approximate L ~ sum(2*cos(j)), for j suitably chosen, as described below.
Then z = L*e^(i*theta) = sum(2*cos(j),j in suitable set)*e^(i*k).
I don't believe that there are any "collisions", whereby the product produces any bit positions which require a digit other than "0" or "1", but if there were, one could always choose a different set of j's in a way to avoid such collisions.
As an example, let's approximate -pi = pi*exp(i*pi).
We first approximate exp(i*pi) to within 1 angular degree.
k=22 works, so exp(22*i) ~ exp(pi*i).
We now approximate pi using a cosine series.
pi = sum(2*cos(j), suitable j), so
pi ~ 1 + 2*cos(6) + 2*cos(11) + 2*cos(14) + 2*cos(77) ~ 3.14.
Finally, we have
pi*e^(pi*i) ~
(r^0+r^6+r^-6+r^11+r^-11+r^14+r^-14+r^77+r^-77)*r^22
= r^-55+r^8+r^11+r^16+r^22+r^28+r^33+r^36+r^99
Check using Maxima:
(%i1) r^-55+r^8+r^11+r^16+r^22+r^28+r^33+r^36+r^99; 99 36 33 28 22 16 11 8 1 (%o1) r + r + r + r + r + r + r + r + --- 55 r (%i2) %,r=exp(%i),rectform; (%o2) %i (sin(99) - sin(55) + sin(36) + sin(33) + sin(28) + sin(22) + sin(16) + sin(11) + sin(8)) + cos(99) + cos(55) + cos(36) + cos(33) + cos(28) + cos(22) + cos(16) + cos(11) + cos(8) (%i3) bfloat(%); (%o3) - 2.77994517385043b-2 %i - 3.140593309047521b0 (%i4) log(%); (%o4) 1.144450908369626b0 - 3.132741228718346b0 %i (%i5) exp(realpart(%)); (%o5) 3.140716342230068b0 (%i6)
At 08:17 AM 5/5/2018, Henry Baker wrote:
I've been looking at expressing numbers in radix-r notation, for |r|=1, e.g., r=exp(i)=e^i.
Real r, |r|=1 is too boring, so I looked at complex r, |r|=1.
r=exp(i)=e^i is "representative" of this class, and is easy to deal with in a computer algebra system.
We first notice that "most significant bit" and "least significant bit" have no meaning, because |r^n|=1 for all real n.
We're obviously not in Kansas, anymore, Toto!
Zero = "0", as usual.
One = "1", as usual.
Since r^k+r^(-k) = 2*cos(k), we can represent real numbers in the range [-2,2] to any degree of accuracy we wish with only 2 "1" bits using an appropriate k.
Every other real number outside this range can be expressed (very inefficiently) using a "greedy" algorithm that subtracts 2*cos(k) for various k's. "Inefficient" here means that expressing n takes O(n) 1 bits, and most likely O(n) bits in total.
I also plotted all of the complex numbers I could construct using m bits on both sides of 1 -- i.e., binary numbers from 2^(-m) up to 2^m. These form pretty & mostly symmetrical patterns with blotches that eventually merge as m grows in size. (I don't have any way to show you these plots.)
Links: ------ [1] http://gosper.org/expi-plot.png
